traitement de l'eau de 100m3/h DAF Dissolved Air Flotation Clarifier
Détails sur le produit:
| Lieu d'origine: | La Chine |
| Nom de marque: | Fenigal/OEM |
| Certification: | CE/ISO etc. |
| Numéro de modèle: | DAF-3-9A |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 ensemble |
|---|---|
| Prix: | Negotiable |
| Détails d'emballage: | Caisse en bois/carton ou nu d'exportation standard enveloppé par le film/conteneurisé |
| Délai de livraison: | 15~30 jours |
| Conditions de paiement: | T/T, Western Union, Paypal etc. |
| Capacité d'approvisionnement: | Ensemble 200 par mois |
|
Détail Infomation |
|||
| Technologie: | Bioréacteur de membrane | Membrane: | Fibre de holow de PVDF/PTFE, feuille à plat facultative |
|---|---|---|---|
| Conception: | Bâti de dérapage/conteneurisé | Température de l'eau.: | 5~35˚C |
| Débit unitaire de l'eau: | jusqu'à 315 m3 par jour | Matériel: | acier au carbone |
| Tension: | 380V, 415V, 220V, peut être adapté aux besoins du client | Application: | Les eaux usées, traitement d'eaux usées |
| Taille: | Compact ou plus grand | Contrôle: | électronique, Manual/PLC |
| Surligner: | 100m3/h a dissous le purificateur de flottation à air,La DAF a dissous le purificateur de flottation à air,100m3/h a dissous l'équipement de flottation à air |
||
Description de produit

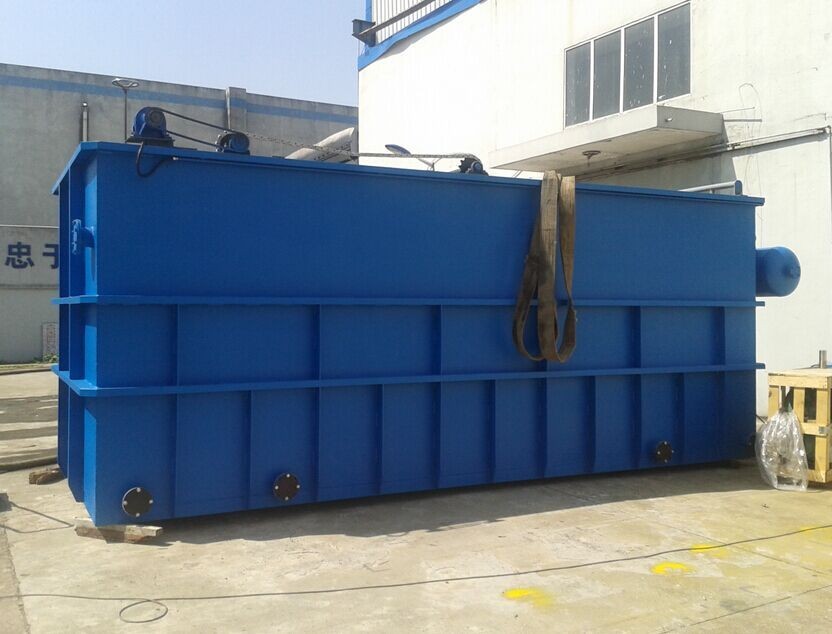

traitement de l'eau de 100m3/h DAF Dissolved Air Flotation Clarifier
Dissolved Air Flotation DAF Clarifier for diary and beverage water treatment
Features
DAF clarifier has several features as follows:
Small footprint, lower energy consumption; easy operation and simple management
High efficiency of dissolved air, stable treatment effects. Electro-mechanic instruments are integrally controlled
This equipment's dissolved air efficiency reaches up to 90%. But its volume is only one fifth of the ordinary dissolved air system. Moreover, it has stronger anti-clogging capability than other DAF.
This equipment uses new type dissolved air releaser with the advantages of high releasing degree and self-cleaning functions. And the average particle size of micro bubbles is about 15~30μm
This equipment uses chain-plate-type skimmer with advantages of stable operation and high efficiency of scraping.
| Type size |
Treatment capacity |
Tank Length (mm) |
Tank Width (mm) |
Tank Depth (mm) |
Pump power (kw) |
Air compresDAF power (kw) |
Skimmer power (kw) |
| DAF-1 | 1m³/h | 1400 | 550 | 1100 | 0.55 | 0.55 | 0.18 |
| DAF-2 | 2 m³/h | 1800 | 700 | 1300 | 0.55 | 0.55 | 0.18 |
| DAF-3 | 3 m³/h | 2800 | 800 | 1900 | 0.75 | 0.75 | 0.37 |
| DAF-5 | 5 m³/h | 3000 | 1000 | 1900 | 1.1 | 0.75 | 0.37 |
| DAF-10 | 10 m³/h | 4000 | 1200 | 2100 | 1.5 | 0.75 | 0.37 |
| DAF-15 | 15m³/h | 4500 | 1500 | 2100 | 2.2 | 0.75 | 0.37 |
| DAF-20 | 20m³/h | 4500 | 1800 | 2100 | 2.2 | 0.75 | 0.37 |
| DAF-30 | 30m³/h | 5500 | 2000 | 2100 | 3.0 | 0.75 | 0.37 |
| DAF-40 | 40m³/h | 6000 | 2200 | 2100 | 5.5 | 0.75 | 0.37 |
| DAF-50 | 50m³/h | 6000 | 2700 | 2100 | 7.5 | 1.5 | 0.37 |
| DAF-60 | 60m³/h | 7000 | 2800 | 2100 | 7.5 | 1.5 | 0.37 |
| DAF-70 | 70 m³/h | 8000 | 3000 | 2100 | 11 | 2.2 | 0.55 |
| DAF-80 | 80m³/h | 9000 | 3200 | 2100 | 11 | 2.2 | 0.55 |
| DAF-100 | 100 m³/h | 9000 | 3600 | 2100 | 15 | 2.2 | 0.55 |
Application
As a waste water process, DAF clarifier is widely used in sewage treatment and water purification engineering. DAF clarifier is suitable for:
l Increase effluent recycling and fresh water reusing in paper and pulp
l Removal of heavy metal ions
l Separation of oil refinery effluent
l Removal of tannery wastewater
l Removal of chromaticity and impurities in printing and dyeing wastewater
l Solid-liquid separation of sewage and membrane after all kinds of bio-treatment
l Sludge concentration (capacity: 20%~ 30%, except the dedicated device which can be designed according to the requirements)
