DuPont™ SFP-2880 UF Membrane: Advanced Water Purification for Industrial Applications
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Dupont |
| Certification: | CE |
| Numéro de modèle: | SFP-2880 |
| Documents: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pc |
|---|---|
| Prix: | négociable |
| Détails d'emballage: | Emballage d'exportation standard |
| Délai de livraison: | 5- 8 jours de travail |
| Conditions de paiement: | , T / t |
| Capacité d'approvisionnement: | 60000 unités par mois |
|
Détail Infomation |
|||
| 2880 Module Flux Range: | 40–90 LMH (24–53 gfd) à 25 °C | 2880 Débit des modules: | 2.0·6,9 m3/h (8,8·30,4 gpm) |
|---|---|---|---|
| 2880 Limites de température du module: | 1–40 °C (34–104 °F) | 2880 module max opération TMP: | 2.1 bar (30,5 psi) |
| Tolérance chimique: | Supporte jusqu'à 2 000 mg / L de naocl | Conception optimisée: | 77m2 |
| 2880 Module large plage d'applications: | Convient pour le traitement des eaux de surface, des eaux de mer, de la production municipale d'eau | Type à membrane: | Composants de membrane d'ultrafiltration de qualité industrielle |
| Mettre en évidence: | DuPont UF membrane for industrial water purification,DOW UF membrane with high performance,SFP-2880 UF membrane for water treatment |
||
Description de produit
DuPont™ SFP-2880 UF Membrane: Advanced Water Purification for Industrial Applications
Product Overview
Engineered for excellence, the DuPont™ SFP-2880 ultrafiltration membrane represents cutting-edge water treatment technology. This premium-grade membrane utilizes state-of-the-art hollow fiber design to achieve exceptional filtration performance, effectively removing contaminants including pathogens, colloids, and particulate matter.
Specifically developed for demanding industrial environments, it serves as an ideal pretreatment solution for reverse osmosis systems and enables efficient wastewater recycling. The membrane demonstrates outstanding chemical compatibility and mechanical durability, ensuring stable operation under challenging conditions.
Key Features
- Advanced Filtration Performance: Removes bacteria, viruses, and colloids with high efficiency; achieves filtrate turbidity below 0.1 NTU and SDI under 2.5; ideal protection for reverse osmosis systems
- Engineered Durability: Chemical-resistant PVDF membrane withstands extreme pH conditions; U-PVC housing eliminates need for pressure vessels; operating temperature range supports global deployments
- High-Efficiency Design: Industry-leading membrane area enables high flow rates; outside-in flow handles high solids loading; reduced backwash frequency lowers water consumption
- Operational Reliability: Consistent performance in municipal and industrial settings; minimal maintenance requirements; compatible with automated control systems
Technical Specifications
| Attribute | Value |
|---|---|
| UF Module Flux Range | 40–90 LMH (24–53 gfd) at 25°C |
| Flow Rate per Module | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
| UF Module Temperature Limits | 1–40°C (34–104°F) |
| UF Module Max Operating TMP | 2.1 bar (30.5 psi) |
| Chemical Tolerance | Withstands up to 2,000 mg/L NaOCl |
| Membrane Area | 77m² |
| Membrane Type | Industrial Grade Ultrafiltration Membrane Components |
Product Specifications
| Model | Type | Part # | Membrane Area (m²/ft²) | Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Flow range | 3.1-9.3 m³/hr | 13.6 - 40.9 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm³/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
Important: If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.

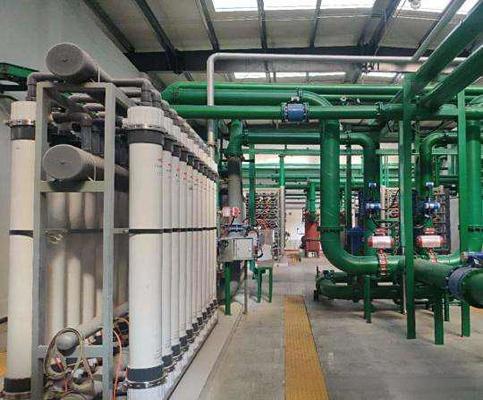

Module Installation
For application cases, please visit: www.fgwater.com/Industries/
