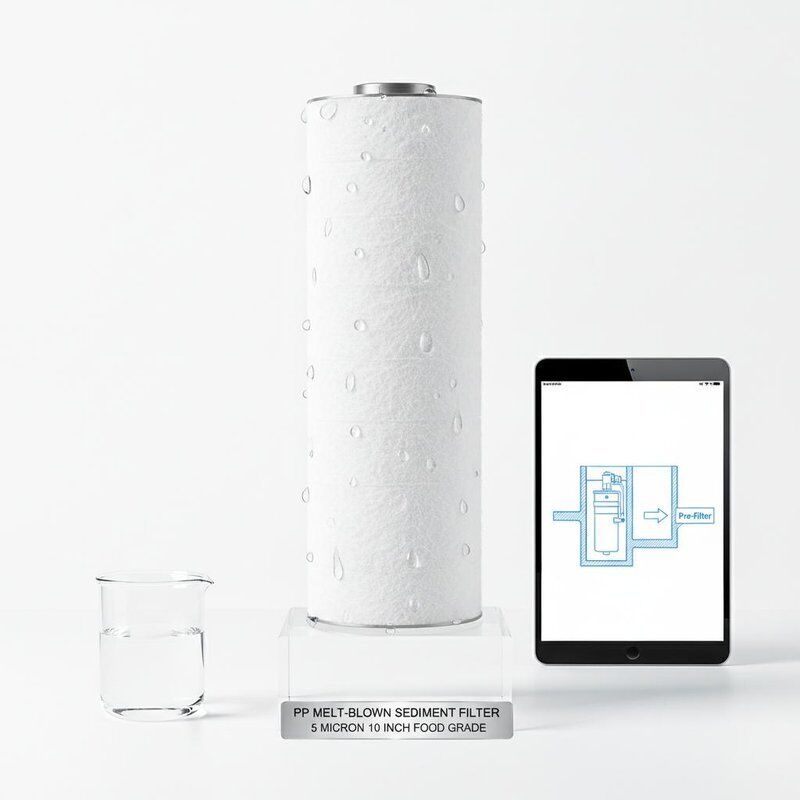

PP Melt-Blown Sediment Filter Cartridge 5 Micron 10 Inch Standard Size Food Grade Polypropylene RO Pre-Filtration
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | Fenigal/OEM |
| Certification: | FDA, NSF 42, ISO 9001:2015 |
| Numéro de modèle: | PP-SF10-5M |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 pièces |
|---|---|
| Prix: | USD 0.5-1.5 / Piece |
| Détails d'emballage: | Sac scellé individuel en PE, 25 pièces/carton d'exportation, palettisé avec film rétractable |
| Délai de livraison: | 3-5 jours ouvrables pour le stock, 10-15 jours pour la production |
| Conditions de paiement: | T/T, LC, Western Union, PAYPAL |
| Capacité d'approvisionnement: | 100 000 pièces par mois |
|
Détail Infomation |
|||
| Type de filtre: | Cartouche de sédiments soufflés par fusion | Média filtrant: | 100% de polypropylène (PP) |
|---|---|---|---|
| Rating de filtration: | Absolu de 5 microns | Longueur de la cartouche: | 10 pouces (254 mm) |
| Diamètre extérieur: | 63 mm (2,5 pouces) | Débit maximum: | 20 L/min (5,3 GPM) |
| Température maximale: | 60°C (140°F) | Configuration de fin: | Double extrémité ouverte (DOE) |
| Mettre en évidence: | PP melt-blown sediment filter cartridge,5 micron RO pre-filtration,10 inch food grade polypropylene filter |
||
Description de produit
PP Melt-Blown Sediment Filter Cartridge 5 Micron
Our 5 micron melt-blown polypropylene sediment filter cartridge in 10 inch standard size is manufactured from 100% food grade polypropylene using advanced melt-blown technology. The gradient density structure provides progressive depth filtration with high dirt holding capacity, effectively removing sand, rust, silt, and suspended particles from water.
Key Features
- 5 micron absolute filtration rating for fine particle removal
- 10 inch standard size compatible with common filter housings
- 100% food grade polypropylene without binders or adhesives
- Gradient density depth filtration for longer service life
- High dirt holding capacity reducing replacement frequency
- Resistant to bacteria and chemical growth
- Wide chemical compatibility for diverse water sources
- NSF certified material for potable water safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media | 100% Polypropylene (PP) Melt-Blown |
| Filtration Rating | 5 Micron (Absolute) |
| Cartridge Length | 10 inch (254mm) |
| Outer Diameter | 63mm (2.5") |
| Inner Diameter | 28mm (1.1") |
| Maximum Flow Rate | 20 L/min (5.3 GPM) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| Maximum Operating Temperature | 60°C (140°F) |
| End Cap Configuration | Double Open End (DOE) |
| Material Certification | FDA, NSF 42 Compliant |
Applications
- RO system pre-filtration protection
- Whole house point-of-entry water filtration
- Commercial beverage and food processing
- Industrial cooling tower make-up water
- Car wash water recycling systems
- Swimming pool and spa filtration
- Agricultural drip irrigation pre-treatment
Packaged individually in sealed PE bag, 25 pieces per export carton. Custom micron ratings (1, 5, 10, 20, 50 micron) and sizes available. OEM private labeling with custom branding offered.
