DuPont™ SFP-2880 UF Module – Cost-Effective RO Pretreatment & Water Reuse
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Dupont |
| Certification: | CE |
| Numéro de modèle: | SFP-2880 |
| Documents: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | négociable |
| Détails d'emballage: | Emballage standard d'exportation |
| Délai de livraison: | 5- 8 jours de travail |
| Conditions de paiement: | , T / t |
| Capacité d'approvisionnement: | 60000 unités par mois |
|
Détail Infomation |
|||
| Gamme de flux du module du composant: | 40–90 LMH (24–53 gfd) à 25 °C | Débit du module du SFP-2880: | 2.0·6,9 m3/h (8,8·30,4 gpm) |
|---|---|---|---|
| Limites de température du module du SFP-2880: | 1–40 °C (34–104 °F) | Module TMP de fonctionnement maximum du SFP-2880: | 2.1 bar (30,5 psi) |
| Tolérance chimique du module: | Supporte jusqu'à 2 000 mg / L de naocl | Conception optimisée des modules: | 77m2 |
| Large gamme d'applications du SFP-2880: | Convient pour le traitement des eaux de surface, des eaux de mer, de la production municipale d'eau | Type à membrane: | Composants de membrane d'ultrafiltration de qualité industrielle |
Description de produit
DuPont™ SFP-2880 UF Module – Cost-Effective RO Pretreatment & Water Reuse
Product Overview
Protect your reverse osmosis system and reduce operational expenses with the DuPont™ SFP-2880. This robust UF module serves as a critical barrier, efficiently removing contaminants that cause RO fouling. By ensuring superior feed water quality, it extends RO membrane lifespan, minimizes chemical cleaning, and lowers the total cost of ownership for your water treatment plant.
Key Features
- Advanced Filtration Performance: Removes bacteria, viruses, and colloids with high efficiency; achieves filtrate turbidity below 0.1 NTU and SDI under 2.5; ideal protection for reverse osmosis systems
- Engineered Durability: Chemical-resistant PVDF membrane withstands extreme pH conditions; U-PVC housing eliminates need for pressure vessels; operating temperature range supports global deployments
- High-Efficiency Design: Industry-leading membrane area enables high flow rates; outside-in flow handles high solids loading; reduced backwash frequency lowers water consumption
- Operational Reliability: Consistent performance in municipal and industrial settings; minimal maintenance requirements; compatible with automated control systems
Technical Specifications
| Attribute | Value |
|---|---|
| UF Module Flux Range | 40–90 LMH (24–53 gfd) at 25°C |
| Flow Rate per Module | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
| UF Module Temperature Limits | 1–40°C (34–104°F) |
| UF Module Max Operating TMP | 2.1 bar (30.5 psi) |
| Chemical Tolerance | Withstands up to 2,000 mg/L NaOCl |
| Membrane Area | 77m² |
| Membrane Type | Industrial Grade Ultrafiltration Membrane Components |
Product Specifications
| Model | Type | Part # | Membrane Area (m²/ft²) | Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Flow range | 3.1-9.3 m³/hr | 13.6 - 40.9 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm³/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
Important: If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.

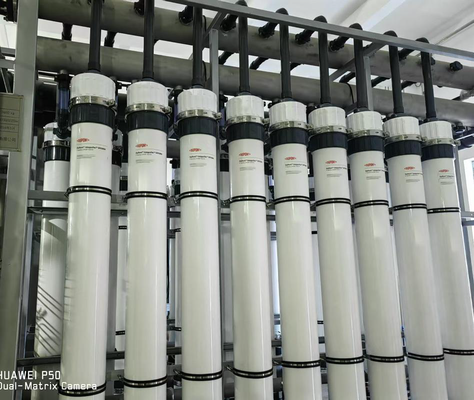

Module Installation
For application cases, please visit: www.fgwater.com/Industries/
