Dupont UF Membranes IntegraTec™ XP 51 IG For System Designs With Limited Height Or Space
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | DOW |
| Certification: | CE |
| Numéro de modèle: | IntegraTecTM XP 51/ XP 51 IG ((anciennement connu sous le nom de SFD/SFP-2860XP) |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | négociable |
| Détails d'emballage: | Emballage standard d'exportation |
| Délai de livraison: | 5- 8 jours de travail |
| Capacité d'approvisionnement: | 60000 unités par mois |
|
Détail Infomation |
|||
| Mode de filtration XP 51 IG: | Extérieur sous pression | Type de membrane XP 51 IG: | Fibre creuse |
|---|---|---|---|
| XP 51 IG Matériau de membrane: | PVDF (fluorure de polyvinylidène) | Taille des pores de membrane XP 51: | Env. 0,03 µm |
| Processus de fonctionnement du module: | Impasse | Autres composants du module mouillé: | Polyuréthane, polyéthylène et polyamide |
| Zone de membrane active XP 51 IG: | 51 m² | XP 51 IG Expédition Poids: | 60 kg |
| XP 51 IG Poids à vide: | 48 kg | Poids rempli de poids: | 83 kg |
| Application du produit: | Traitement des eaux usées | Avantages XP 51 IG: | adapté aux conceptions de systèmes avec une hauteur ou un espace limité |
Description de produit

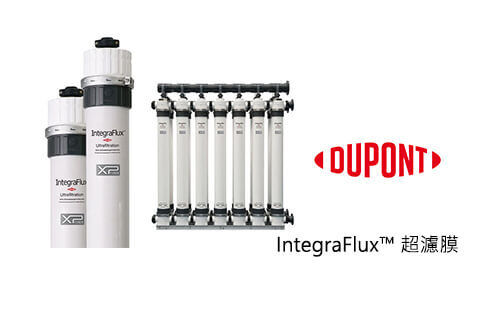

Dupont UF Membranes IntegraTec™ XP 51 IG For System Designs With Limited Height Or Space
The XP 51 is a compact model in the XP series, suitable for systems with limited height or space.
1. Membrane material: PVDF
2. Nominal pore size: approximately 0.03 μm
3. Effective membrane area per module: approximately 51 m²
4. Module diameter: approximately 203 mm (8 inches), length: approximately 1520 mm (60 inches)
5. Typical operating flux is similar to the SFP2860, typically in the range of 40–110 LMH
6. Primarily used in containerized water treatment systems, small industrial RO pretreatment units, and modular equipment.
7. This model's advantage lies in its flexible system integration, suitable for standardized export equipment and customized skids.
Key Features Proven XP™ hydrophilic PVDF fibers:
• Excellent stain and chlorine resistance.
• High removal of colloidal particles, bacteria and viruses.
• Excellent filter permeability.
• Easy to clean and wet.
Optimized module design: Open platform design to fit customer-built skids.
• Short module design for height-restricted or containerized installations.
• High operating recovery rate with high air scour tolerance.
• Reduced chemical consumption through maintenance cleaning protocols.
• Rugged materials for long service life.
• Easy installation and low maintenance costs.
Product Specifications
Operating Parameters
