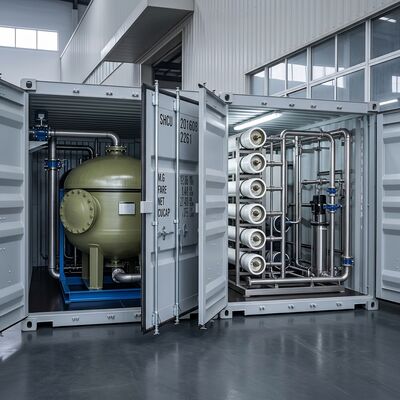

200m3 Day Integrated UF RO Containerized Water Treatment System in 40ft Container
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Fenigal/OEM |
| Certification: | CE/ISO 9001/CSC Container |
| Numéro de modèle: | FRO-CUFRO-200 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 ensemble |
|---|---|
| Prix: | négociable |
| Détails d'emballage: | Conteneur ISO autonome de 40 pieds |
| Délai de livraison: | 45 à 60 jours |
| Conditions de paiement: | T/T, L/C, Western Union |
| Capacité d'approvisionnement: | 8 réglé par mois |
|
Détail Infomation |
|||
| Flux de perméat RO: | 200 m³/jour (8,3 m³/h, 52 800 GPD) | Récupération de l'étape UF: | 90 ~ 95 % (en fonction de l'alimentation) |
|---|---|---|---|
| Récupération de l'étape RO: | 70 ~ 80% | Taille des pores UF: | 0,03 μm (fibre creuse PVDF, extérieur-intérieur) |
| Exigence de puissance: | 380 ~ 480 V, triphasé, 50/60 Hz, 55 kW | Poids opérationnel: | Env. 14 000 kg |
| Mettre en évidence: | UF RO Integrated Container,Ultrafiltration RO Containerized System,200m3 Day UF RO Plant |
||
Description de produit
UF RO Integrated Containerized Water Treatment System 200m³/Day 40ft
The FRO-CUFRO-200 represents the most advanced single-container water treatment solution available, integrating ultrafiltration (UF) pretreatment and reverse osmosis (RO) desalination within one standard 40ft High Cube ISO container. This innovative dual-barrier approach eliminates the need for conventional chemical-intensive pretreatment steps when treating challenging surface water sources, secondary wastewater effluent, or highly variable raw water quality. The system delivers 200 m³/day of permeate production and is ideal for surface water treatment plants, industrial wastewater reuse projects, and municipal water reclamation facilities where space, installation time, and operational simplicity are critical.
Key Features
- Integrated UF+RO Dual Barrier Treatment: Combines six 51 m² DuPont IntegraTec XP UF modules with twenty DOW BW30-8040 RO membrane elements in a single container
- UF Produces SDI Below 2.5 for RO Protection: Consistently produces filtrate with SDI values below 2.5 and turbidity below 0.1 NTU
- Automatic Air Scour Backwash: Features fully automatic backwash cycles with air scour and filtrate backflush, including periodic chemical-enhanced backwash
- Dual CIP System for UF and RO: Separate Clean-in-Place circuits with dedicated chemical dosing pumps and automated valve sequencing
- DuPont IntegraTec XP UF Technology: PVDF fibers offer exceptional chlorine tolerance and hydrophilic surface chemistry
- PLC with 12-inch HMI and 4G Remote Access: S7-1200 PLC provides unified control of both UF and RO subsystems
- Single-Container Simplicity: Reduces total installed footprint by approximately 35% compared to two-container solutions
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FRO-CUFRO-200 |
| Total RO Permeate Flow | 200 m³/day (8.3 m³/h, 52,800 GPD) |
| UF Stage Recovery | 90~95% (Feed-Dependent) |
| RO Stage Recovery | 70~80% |
| Overall System Recovery | 63~76% |
| UF Membranes | 6 * DuPont IntegraTec XP 51IG, 51 m² each (306 m² total) |
| UF Pore Size | 0.03 μm (PVDF Hollow Fiber, Outside-In) |
| UF Filtrate SDI | ≤ 2.5 |
| UF Filtrate Turbidity | ≤ 0.1 NTU |
| RO Membranes | 20 * DOW BW30-8040, 3-Stage Array |
| RO Salt Rejection | ≥ 99.0% |
| Max. Feed Turbidity | 50 NTU (Peak) / 20 NTU (Average) |
| Feed TDS Range | 100 - 3,000 ppm |
| Power Requirement | 380~480V, 3PH, 50/60Hz, 55 kW |
| Container Type | 40ft High Cube ISO, CSC Certified |
| Operating Weight | Approx. 14,000 kg |
| CIP System | Dual Circuit: UF (NaOCl / Citric Acid) + RO (NaOH / Citric Acid) with Heater |
Applications
The FRO-CUFRO-200 is specifically engineered for water sources where conventional multimedia pretreatment would be inadequate. Primary applications include surface water treatment from rivers, lakes, and reservoirs with seasonal turbidity spikes, municipal wastewater effluent polishing for industrial reuse, food and beverage process water production, textile and dyeing industry wastewater recovery, and power plant cooling tower blowdown recovery. The system is particularly valuable in tropical and subtropical regions where high organic loading makes conventional pretreatment unreliable.
Packaging and Quality Assurance
Each system undergoes extensive factory acceptance testing including 48-hour integrated wet testing, UF integrity testing, RO membrane performance verification, and full PLC logic testing. The 40ft container ships as a standard ISO unit with comprehensive documentation including system P&ID, individual test certificates, chemical cleaning procedures, and commissioning checklists. Optional services include on-site commissioning, operator training, and preventive maintenance service agreements.
