DHP 5.3 Axial Piston Pump 10-80 Bar Pressure-Adaptable Water Treatment Consumables for Industrial Reverse Osmosis

Détails sur le produit:

Lieu d'origine: Chine
Nom de marque: Fenigal
Certification: CE
Numéro de modèle: DHP 5.3

Conditions de paiement et expédition:

Quantité de commande min: 1 pc
Prix: négociable
Détails d'emballage: Emballage d'exportation standard
Capacité d'approvisionnement: 60000 unités par mois
meilleur prix Contact

Détail Infomation
Modèle de produit: DHP 5.3 Déplacement géométrique: 63 cm³ / rev
Écoulement nominal à vitesse nominale (1500 tr / min): 5,3 m³ / h (équivalent à 88 l / min en débit infime) Pression de sortie minimale: 10 bar
Pression maximale de sortie continue: 80 bar (pour les exigences de pression plus élevées ou inférieures, veuillez contacter le représenta
Mettre en évidence:

axial piston pump for water treatment

,

industrial reverse osmosis pump

,

pressure-adaptable water treatment consumables

Description de produit

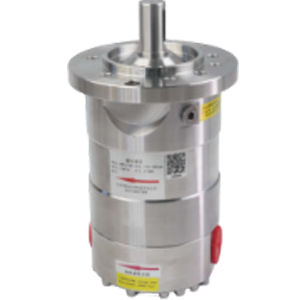

The DHP 5.3 axial piston pump, a reliable water treatment consumable from WUXI FENIGAL, is engineered for large/medium seawater & industrial desalination systems. As a key model in the DHP series, it stands out with balanced large flow, high stability, and strong corrosion resistance—becoming core fluid transfer equipment for industrial reverse osmosis desalination.

Operating on the axial piston principle, its plungers (parallel to the drive shaft) reciprocate in bores to adjust pump cavity volume, enabling high-pressure transfer of low-viscosity corrosive media (seawater, industrial saline wastewater). Unlike traditional pumps, it uses the transported fluid as lubricant, eliminating oil tanks and oil leakage to meet desalination’s strict cleanliness demands. The integrated flushing check valve simplifies RO membrane system piping, reducing installation space and costs—ideal for factory-level wastewater desalination and medium-sized seawater desalination stations.

Core Advantages for Water Treatment

  • Balanced Large Flow & High Stability: Delivers 5.3 m³/h flow at 1500 rpm rated speed, satisfying large/medium system needs. Ultra-low pulse, ≤78 dB(A) noise (per EN ISO 3744-2010), fitting environment-sensitive industrial sites.
  • Strong Corrosion Resistance & Wide Pressure Adaptability: Key components use 2205 duplex stainless steel, resisting high-salinity corrosion. 10-80 Bar continuous outlet pressure adapts to different RO membrane systems; 2-5 Bar low inlet pressure reduces front-end equipment configuration difficulty.

Core Technical Parameters of DHP 5.3

Parameter Category Specific Value
Product Model DHP 5.3
Geometric Displacement 63 cm³/rev
Rated Flow (1500 rpm) 5.3 m³/h (88 L/min)
Minimum Outlet Pressure 10 Bar
Maximum Continuous Outlet Pressure 80 Bar (Contact FENIGAL sales for other requirements)
Minimum/Maximum Inlet Pressure 2 Bar / 5 Bar
Continuous Operating Speed Range 700～1800 rpm
Operating Noise (EN ISO 3744-2010) ≤78 dB(A) (measured on full unit at max pressure/speed)
Power (1500 rpm & 80 Bar) 15.0 kW
Medium Temperature 2～50 ℃ (NaCl concentration-dependent)
Ambient Temperature 0～50 ℃
Overall Weight 34.5 kg
Integrated Component Flushing Check Valve
Core Application Large/medium seawater desalination, industrial wastewater desalination, resource recovery

Power Parameters (1500 rpm Rated Speed)

Pump Model Rated Flow (L/min) Rated Flow (m³/h) Power at 60 Bar Power at 70 Bar Power at 80 Bar Rated Speed (rpm)
DHP 5.3 88 5.3 11.0 kW 15.0 kW 15.0 kW 1500

Inlet & Outlet Dimensions

Piston Pump Model Inlet Size Outlet Size
DHP 5.3 M42×1.5, 22 mm Depth M42×1.5, 22 mm Depth

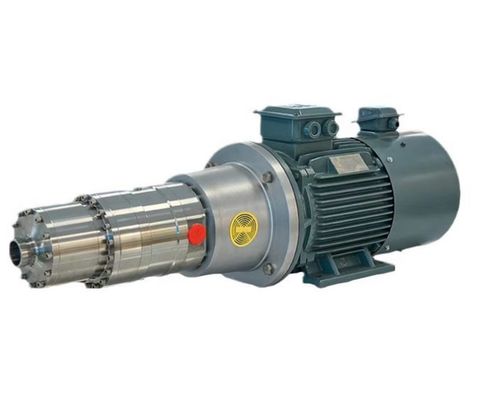

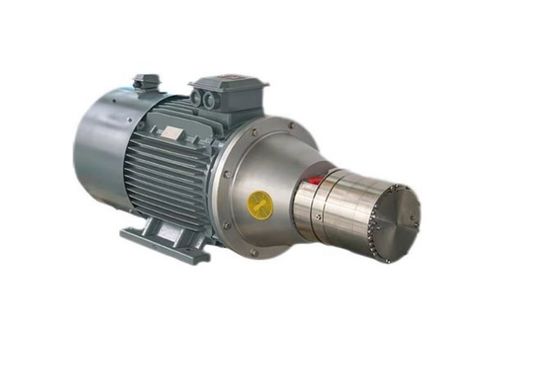

Overall Dimensions (mm, with Motor)

Piston Pump A B H K P AD HD C D L G IEC Motor
DHP 5.3 254 210 160 15 350 260 420 253 204 605 1069 11 kW - 4P
DHP 5.3 254 254 160 15 350 265 420 253 204 645 1109 15 kW - 4P
DHP 5.3 279 241 180 15 350 265 445 253 204 695 1159 18.5 kW - 4P

Installation & Operation Tips

  1. Interface Connection: "I" = inlet, "O" = outlet (M42×1.5). Match pipeline threads to avoid forced connection damage; ensure tightness to prevent leakage.
  2. Filtration Requirement: Install 10 μm absolute filter (≥99.98% efficiency, β10>5000) at inlet—prohibit 90% efficiency filters to avoid internal component wear.
  3. Pressure Protection: Inlet low-pressure switch (2 Bar) prevents dry running; outlet high-pressure switch (70 Bar) + safety valve (5-9 MPa) protects RO membranes/pipelines.
  4. Start-Up/Shutdown: Flush with fresh water after shutdown (add bactericide if >15 days shutdown). Never start with rear valve closed.

Maintenance & Warranty

  • Daily Maintenance: Check filter pressure difference (replace element if >0.5 Bar) to keep inlet fluid clean.
  • Regular Inspection: Full inspection every 8000 hours (check shaft seal leakage, plunger wear—replace parts if flow drops >10%).
  • Warranty: 1-year free maintenance (delivery date); 8000-hour maintenance-free warranty (if operated as required, max 18 months).

Manufacturer Information

  • Company: WUXI FENIGAL SCIENCE AND TECHNOLOGY CO., LTD. (FG Water Technologies)
  • Address: Chuangyi Industrial Park, No. 100 Dicui Road, Binhu District, Wuxi City, Jiangsu Province, China
  • Tel: +86-510-85163211
  • Mobile: +86-13646187144
  • Email: sales@fgwater.com
