4021 Size Reverse Osmosis Membrane Element 1000 GPD with 99.3% Salt Rejection Compact RO Element
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | FILTERPRO |
| Certification: | ISO 9001:2015 |
| Numéro de modèle: | FP-4021-RO |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | USD 35-75 / Piece |
| Détails d'emballage: | Emballage individuel sous vide dans un carton de protection avec solution de conservation |
| Délai de livraison: | 2-3 jours ouvrables pour le stock, 10-15 jours pour la production |
| Conditions de paiement: | T/T, L/C, PayPal, Western Union |
| Capacité d'approvisionnement: | 15 000 pièces par mois |
|
Détail Infomation |
|||
| Taille de l'élément membranaire: | 4021 (4 pouces x 21 pouces) | Zone de membrane active: | 36 pi² (3,3 m²) |
|---|---|---|---|
| Taux de débit de pénétration: | 1 000 GPD (3,8 m³/jour) | Taux de rejet de sel stable: | 99,3% |
| Pression de fonctionnement: | 150 PSI (10,3 bars) | Matériau de la membrane: | Composite à couche mince en polyamide |
| Diamètre du tube de perméat: | 0.75 pouces | Épaisseur de l'interrupteur d'alimentation: | 28 millions |
| Plage de pH: | 2-11 | ||
| Mettre en évidence: | 4021 Compact RO Membrane,1000 GPD Industrial Element,4x21 Inch Reverse Osmosis |
||
Description de produit

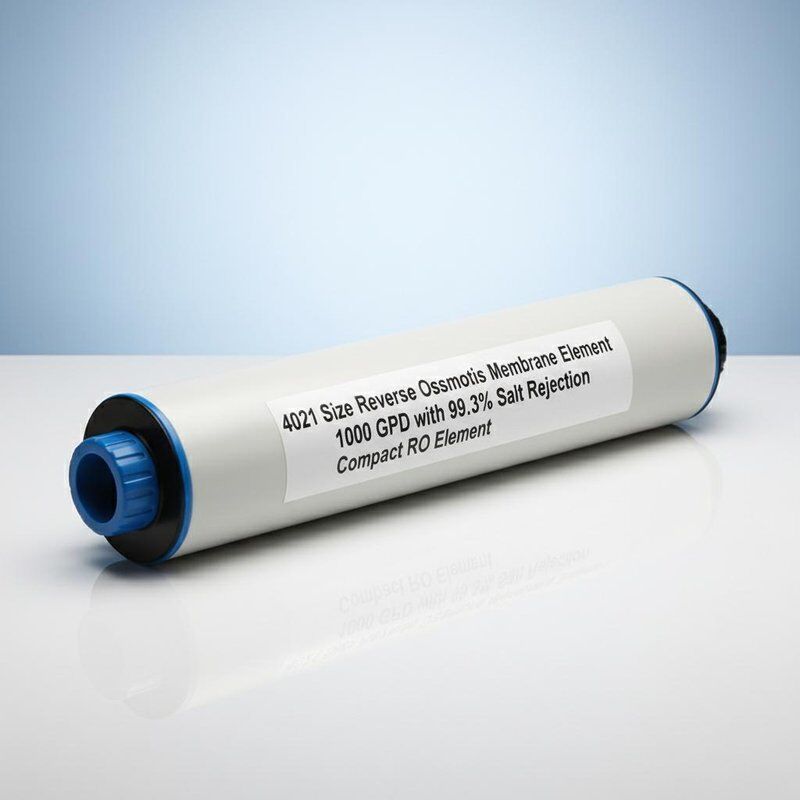

4021 Size Reverse Osmosis Membrane Element 1000 GPD 99.3% Salt Rejection Compact Industrial RO 4x21 Inch
4021 Size Compact RO Membrane Element - 1000 GPD High Performance
The FP-4021-RO is a compact 4021 size reverse osmosis membrane element (4-inch diameter x 21-inch length) engineered for applications where space is at a premium without sacrificing filtration performance. Delivering 1000 GPD of purified water with 99.3% salt rejection, this half-length element is the perfect choice for portable, laboratory, and small-scale industrial RO systems.
Key Features
- Compact 4021 Form Factor: Half the length of a standard 4040 element, the 4021 size fits into tight spaces and lightweight mobile RO units. Ideal for systems where equipment footprint is a critical design constraint.
- 1000 GPD Industry Standard Output: Meets the most common flow requirement for small RO systems including laboratory water purifiers, dental clinic RO units, and portable field water treatment equipment.
- 99.3% Reliable Salt Rejection: Polyamide thin-film composite membrane delivers consistent desalination performance for brackish water with feed TDS up to 2000 ppm.
- Lightweight Design: At approximately 2.5 kg per element, the 4021 form factor enables easy handling, installation, and replacement by a single technician.
- Universal Compatibility: Fits all standard 4021 membrane housings with 0.75-inch permeate tube connection, ensuring broad compatibility with existing systems from multiple manufacturers.
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Element Size | 4021 (4" x 21") |
| Active Membrane Area | 36 ft² (3.3 m²) |
| Permeate Flow Rate | 1,000 GPD (3.8 m³/day) |
| Stable Salt Rejection | 99.3% |
| Operating Pressure | 150 PSI (10.3 bar) |
| Max Operating Pressure | 300 PSI (20.7 bar) |
| Membrane Material | Polyamide TFC |
| Permeate Tube Diameter | 0.75" (19 mm) |
| Feed Spacer Thickness | 28 mil |
| pH Range (Continuous) | 2-11 |
| Max Feed Temperature | 45°C (113°F) |
| Element Weight (Wet) | Approx. 2.5 kg |
Applications
Designed for laboratory water purification systems (Type II/III water), dental and medical clinic RO units, portable field water treatment equipment for military and disaster relief, small commercial ice makers and coffee machines, and vehicle-mounted or shipboard water purification systems. Also suitable for pilot-scale industrial RO testing and process development.
Performance Guarantee
Every FP-4021-RO element is factory wet-tested under standard conditions (2000 ppm NaCl, 150 PSI, 25°C, pH 8, 15% recovery) and shipped with a performance certificate. Minimum 99.0% salt rejection guaranteed at delivery.
