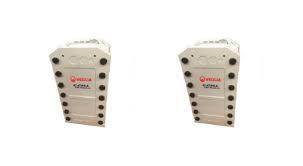

2.0-4.5 M³/hr Veolia E-Cell MK-3 EDI Stack For Medium-Scale Ultrapure Water Production
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | VEOLIA |
| Certification: | CE |
| Numéro de modèle: | Veolia Edi Modules E-Cell MK-3 |
| Documents: | Veolia EDI catalog.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | négociable |

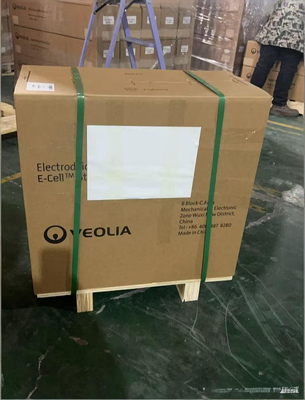

| Détails d'emballage: | Emballage standard d'exportation |
| Délai de livraison: | 5- 8 jours de travail |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 60000 unités par mois |
|
Détail Infomation |
|||
| MK-3 Stack Production d’eau maximale (m3 /h): | 4.5 | Cheminée MK-3 Production minimale d’eau (m3 /h): | 1.6 |
|---|---|---|---|
| Récupération de pile MK-3: | jusqu'à 96% | Poids d'expédition de la pile MK-3 de cette pile: | 100 kg (220 lb) |
| Dureté de la pile MK-3 (ppm en CaCO3): | <1,0 | Sodium: | ≤ 3 ppb |
| Boréum: | Aussi bas que 0,08 ppb | Gamme de pH: | 4 à 11 |
| Couleur: | ≤ 5 apha | Résistivité: | ≥ 16 MOHM-CM |
| Application de module: | Préparation de l'eau de la haute pureté industrielle | ||
Description de produit
The Veolia E-Cell MK-3 EDI Stack delivers reliable, chemical-free ultrapure water production for medium-flow industrial applications. With an optimized capacity range of 2.0 to 4.5 m³/hr, this compact stack balances performance with space efficiency, making it perfect for system upgrades or new installations where footprint matters.
Engineered for seamless integration, the MK-3 serves as a versatile solution across pharmaceuticals, microelectronics, and power generation. Its standardized design ensures straightforward compatibility with existing E-Cell systems while providing enhanced operational consistency.
Key Advantages:
-
Medium-flow design: 2.0–4.5 m³/hr capacity range
-
Space-efficient footprint: 30×61×54 cm
-
Zero chemical consumption for regeneration
-
Consistent high-purity output
-
Direct replacement for legacy E-Cell models
Choose the MK-3 for cost-effective purification that scales with your operational needs. Request custom quotation and technical specifications for your project requirements.
| Attribute | Value |
|---|---|
| Maximum water production (m³/hr) | 4.5 |
| Minimum water production (m³/hr) | 1.6 |
| Recovery | Up to 96% |
| Shipping Weight | 100 kg (220 lbs) |
| Hardness (ppm as CaCO₃) | <1.0 |
| Sodium | ≤ 3 ppb |
| Boron | As low as 0.08 ppb |
| pH Range | 4 to 11 |
| Color | ≤ 5 APHA |
| Resistivity | ≥ 16 MOhm-cm |
| Application | Industrial High Purity Water Preparation |
- In-situ electrochemical regeneration: Eliminates chemical acid/base regeneration
- Three-channel design: Counter-current operation reduces scaling risks (verified pressure drop: 1.4-3.4 bar)
- Chemical-free operation: Complies with ISO 14001 standards
- Compact modularity: MK-series depth 29-74 cm for space efficiency
- Thermal sanitization: Supports 85°C hot-water sanitization (≥160 cycles), meeting cGMP
- Energy optimization: 20% reduced energy consumption vs conventional EDI (0-400 VDC)
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m³/h (15 gpm) |
| Flow Rate Range | 1.7 - 4.5 m³/h (7.0 - 20 gpm) |
| Dimensions (W x H x D) | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Product Water Quality | Resistivity ≥ 16 MOhm-cm, Sodium ≤ 3 ppb, Silica ≤ 5 ppb, Boron ≤ 0.08 ppb |
| Removal Efficiencies | Sodium ≥ 99.9%, Silica up to 99%, Boron up to 96% |
| Operating Parameters | Voltage 0-300 VDC, Amperage 0-5.2 ADC, Inlet Pressure ≤ 6.9 bar |
- Ultrapure water for semiconductor chip rinsing and microelectronics
- Demineralized boiler feed water for power plants and industrial facilities
- CE, RoHS, CSA, and EAC certified
- ISO 9001 and ISO 14001 compliant manufacturing
- UKCA certified
- Halal certified by IFANCA®
